Application industry

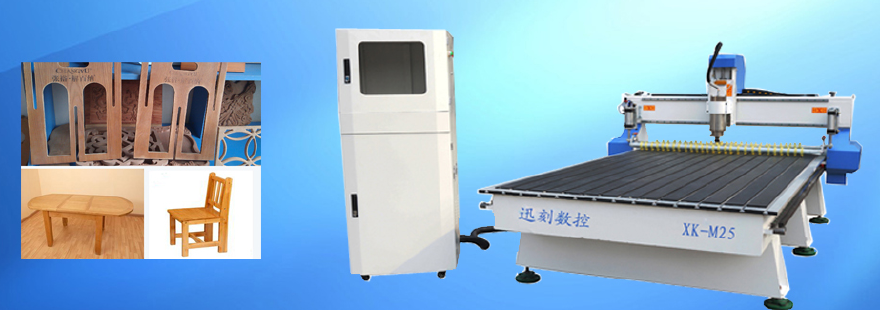

Painted wood industry: three-dimensional wave board processing, cabinet door, solid wood doors, craft wooden door, wenqi door, folding screen, process window processing, shoe polisher, console cabinets and panel, mahjong table, computer desk and auxiliary panel furniture products processing.

Taken the advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.

Can u mould industry: carve copper, aluminum, iron and other metal molds, and artificial marble, sand, plastic board, PVC pipes, board and other non-metal mold.

Taken the other industries: carving can be all kinds of large-scale relief, graven images, widely used in craft gifts industry.

Product feature

1, adopts imported linear square guide rail, double row and four row ball slider, loading capacity is big, smooth operation, high precision, long service life.

2, imported high precision ball screw, the knife precision.

3, using air cooling spindle, big power, the effect is good. Ac servo motor running speed, big power.

4, good software compatibility, is compatible with type3 / Artcam/Castmate/wen tai and other CAD/CAM design software.

5, add the closing device, can be fixed materials for a wide variety of sizes. Two roller spacing size can adjust at will, can use large area of cutting hollow out, also can undertake small cutting work.

6, adopts high speed drive and stepper motor drives, Y axis adopt double motor drive, to speed up to 35 m/min or more empty lines speed, with strong cutting spindle can make engraving speed more increase.

Technical parameters

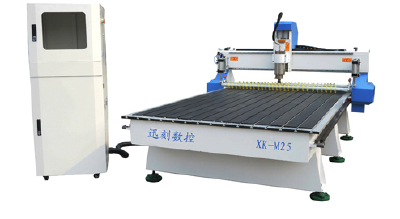

The machine model  XK - 1325 - with the closing device   Optional configuration

Work schedule    1300 * 2500 * 200    Can be customized

The machine structure

Steel structure of lathe bed, profile surface

Mesa of lathe bed adsorption/square tube structure

The machine size   1950 * 3100 * 1650

Spindle power  4.5 KW air cooling spindle   Specify the power/water/head

Maximum working speed   The 20 m/min

Working voltage AC380V, 50 hz    AC220V, 50 hz

The operating system  D macro system    DSP controller or specify system

Way to work  Hybrid servo motor   Stepper motor/servo motor

Carving instruction   G code, HPGL, U00, MMG, PLT

The transmission way    XY rack driving, Z axis ball screw transmission

Material fixed   Clamp platen, equipped with pneumatic finale  orbit

Three axis import square rail

The transmission way    XY rack drive/Z axis screw drive

Available tools     From 3.175-12.7
