Application industry

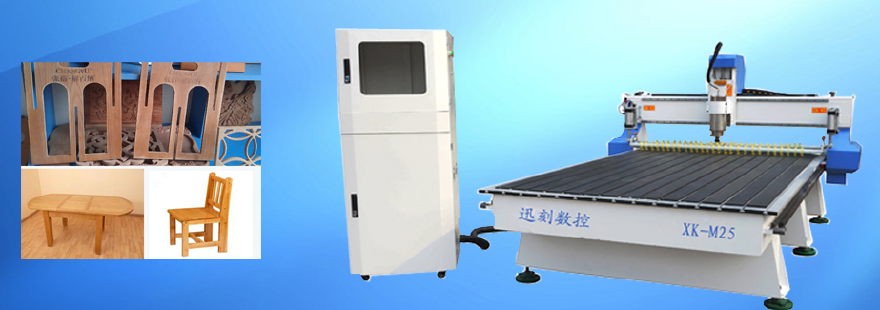

Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, wenqi door, folding screen, process window milling shape carved furniture products.

Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo production, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes make mould.

Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture

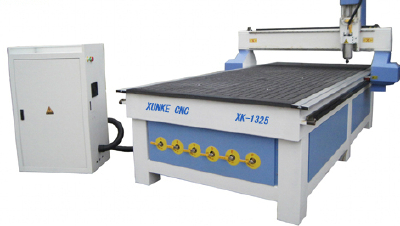

Product feature

Table board for the international leading vacuum adsorption, the material for the electricity board. High adsorption capacity, strong adsorption material of different area, the density of large deformation (1.3 1.45 g/cm), good temperature resistance, resistant to high temperature (115 ℃).

Speed, high efficiency, carving speed can reach 15 m/min.

Carving fine without jagged, bottom level off is smooth and sharp.

Mixer equipped with 5.5 KW high-power vacuum pump, vacuum adsorption mesa, strong suction, greatly improved the woodworking carving work efficiency.

Mixer adopts imported linear square guide, double row and four row ball slider, loading capacity is big, smooth operation, high precision, long service life. Imported high precision ball screw, the knife precision.

Mixer completely out of the USB interface of computer can be remotely operated type DSP operating system, the lever operation, the operation more simple, more humanized design, adopt unique intelligence budget law, give full play to the potential of motor, realize the high speed machining, linear synchronous, perfect curve, do not take the computer memory and can realize automatic start-stop of cutting spindle.

Good software compatibility, is compatible with type3 / Artcam/Castmate/wen tai and other CAD/CAM design software.

Mixer adopts high speed drive and stepper motor drives, Y axis adopt double motor drive, to speed up to 35 m/min or more empty line speed, with strong cutting spindle can make engraving speed more increase.
