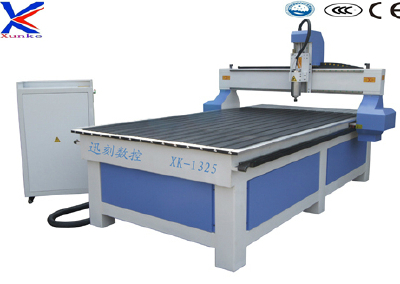

XK - 1325 woodworking engraving machine

XK - 1325 woodworking engraving machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier JINANXUNKECNCMACHIBERY.Co
| Factory
Experience:2015-05-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  jinan
  • Brand Name:  xunke
  • Model Number:  XK - 1325

pplication industry

A.Painted wood industry: three-dimensional wave board processing, cabinet door, solid wood doors, craft wooden door, wenqi door, folding screen, process window processing, shoe polisher, console cabinets and panel, mahjong table, computer desk and auxiliary panel furniture products processing.

B.Taken the advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.

C.Can u mould industry: carve copper, aluminum, iron and other metal molds, and artificial marble, sand, plastic board, PVC pipes, board and other non-metal mold.

D.Taken the other industries: carving can be all kinds of large-scale relief, graven images, widely used in craft gifts industry.

Product feature

1, adopts imported linear square guide rail, double row and four row ball slider, loading capacity is big, smooth operation, high precision, long service life. Imported high precision ball screw, the knife precision.

2, completely out of the USB interface of computer can be remotely operated type DSP system operation, the lever operation, operating more simple, more humanized design, adopt unique intelligence budget law, give full play to the potential of motor, realize the high speed machining, linear synchronous, the curve is more perfect, don't account for the computer memory and can realize automatic start-stop of cutting spindle.

3, good software compatibility, is compatible with type3 / Artcam/Castmate/wen tai and other CAD/CAM design software.

Four, six partition mesa of vacuum adsorption, adsorption is effective for different batch sizes. Vacuum pump can be selected imported brand oil-free vacuum pump to solve water circulation vacuum pump trouble in water under the cold weather.

5, adopts high speed drive and stepper motor drives, Y axis adopt double motor drive, to speed up to 35 m/min or more empty lines speed, with strong cutting spindle can make engraving speed more increase.

Technical parameters

Technical parameters

Machine type XK - 1325-11 optional configuration

Working stroke 1300 * 2500 * 200 can be customized

Machine structure steel lathe bed, bed profile surface square tube structure/adsorption mesa

Machine size 1950 * 3100 * 1650

Spindle power 3.2 KW water-cooled spindle specified power/air/head

The maximum speed of 20 m/s

Working voltage AC380V, 50 hz AC220V, 50 hz

Operating system d macro system DSP controller or specify system

Stepping motor servo motor work way

Carving instruction G code, HPGL, U00, MMG, PLT

Drive XY rack driving, Z axis ball screw transmission

From 3.175-3.175 available tools

XUNKE CNC service commitment:

1, accept customer consultation, according to user requirements, determine the sculpture models, tailored for the customer equipment.

2, free on-site installation and debugging for users, carved machine operation personnel training.

3, one year warranty, life-long free accept to study plant engraving machine engraving machine operation, refresher training, maintenance knowledge.

4, accept technical consultation, at any time to provide customers with technical diagnosis.

5, ultra-low price change for the customer and provide the required all kinds of carving machine
