Application industry

Advertising industry: advertising signs, sign making, advertising materials cutting, blister molding, flash drive models such as a variety of materials advertising the production of decorative products.

Arts and crafts industry: in the wood, bamboo, organic board, double color boards, crystal and other materials for a variety of exquisite design and text on the sculpture.

Product feature

1, the selection of famous brand and high performance inverter constant power water-cooled frequency conversion motor, good performance, torque, high efficiency

2, USES the Taiwan import original linear square rail, double row and four row ball slider, rack driving, large carrying gravity, smooth operation, high precision, long service life. High precision grinding screw transmission and accurate under the knife.

3, mesa integral casting, the structure stability, mesa mobile sculpture, carving precision is higher, more stable performance.

4, system operation is more simple, more humanized design, suitable for all kinds of with and without basic operation study.

5, good software compatibility, is compatible with Type3 / Artcam/CAXA UG/Pro - E/Mastercam/wen tai, and so on.

Technical parameters

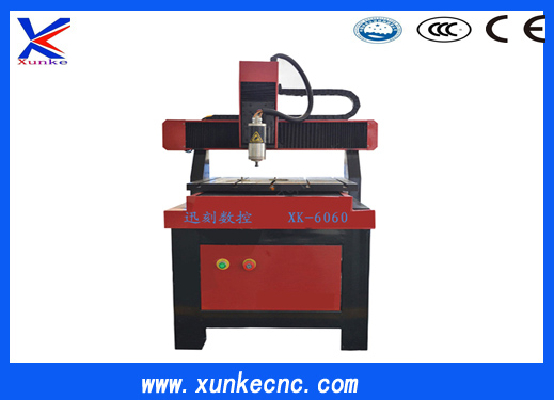

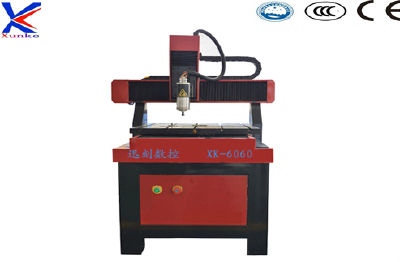

The machine model

XK - 6060.

Optional accessories

Work schedule

600 * 600 * 100

Can be customized

The machine structure

Integral cast iron, mesa mesa mobile

The machine size

850 * 1300 * 1150

Spindle power

1.5 KW water-cooled

Specify the power/air/head

Maximum speed

8 m/min

Maximum working speed

4.5 m/min

The operating system

D macro system

DSP controller/specify system

Way to work

Stepper motor

Servo motor

The resolution of the

The 0.005 mm

Repeat positioning accuracy

The 0.05 mm

The transmission way

High-precision grinding screw transmission

XYZ orbit

Three axis square rail

Material fixed

Mesa mobile, fixed fixture

Available tools

From 3.175-12.7
