Equipped with stainless steel water trough For aluminum and other metal nameplate sculpture making

Application industry

For aluminum, light guide plate, copper, aluminum, stainless steel, etc. (in a water manual cutting without burr, without sticking knife phenomenon of material object.)

Advertising industry: advertising signs, sign making, advertising materials cutting, blister molding, flash drive models such as a variety of materials advertising the production of decorative products.

Arts and crafts industry: in the wood, bamboo, organic board, double color boards, crystal and other materials for a variety of exquisite design and text on the sculpture.

Product feature

1, the selection of famous brand and high performance inverter constant power water-cooled frequency conversion motor, good performance, torque, high efficiency

2, USES the Taiwan import original linear square rail, double row and four row ball slider, rack driving, large carrying gravity, smooth operation, high precision, long service life. High precision grinding screw transmission and accurate under the knife.

3, mesa integral casting, the structure stability, mesa mobile sculpture, carving precision is higher, more stable performance.

4, system operation is more simple, more humanized design, suitable for all kinds of with and without basic operation study.

5, good software compatibility, is compatible with Type3 / Artcam/CAXA UG/Pro - E/Mastercam/wen tai, and so on.

Technical parameters

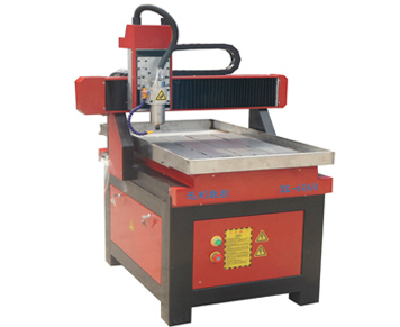

The machine model XK - 6060. Optional accessories

Work schedule 600 * 600 * 100  Can be customized

The machine structure The whole cast iron

The machine size 850 * 1300 * 1150

Spindle power 1.5 KW water-cooled  Specify the power/air/head

Maximum speed 6 m/min

Maximum working speed  4.5 m/min

The operating system D macro system  DSP controller/specify system

Way to work  Stepper motor Servo motor

The resolution of the  The 0.005 mm

Repeat positioning accuracy  The 0.05 mm

The transmission way  High-precision grinding screw transmission

XYZ orbit  Three axis square rail

Material fixed   Mesa mobile, fixed fixture

Available tools  From 3.175-12.7
