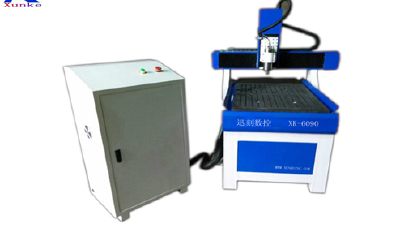

XK - 6090 high precision engraving machine, high configuration, high machining accuracy, engraving processing speed

Application industry

Arts and crafts industry: in the wood, bamboo, artificial acrylic, organic board, double color boards, crystal and other materials for a variety of exquisite design and text on the sculpture.

Mold industry: sand table model engraving cutting, car model, such as mold.

Advertising industry: advertising signs, sign making, advertising materials cutting, blister molding, LED neon production wait for a variety of materials advertising the production of decorative products.

roduct feature

Bed body surface integral cast aluminum structure, strong and durable, is not easy to deformation.

Mixer adopts German ball screw, imported linear guide rail, precision is more durable.

Software compatibility strong, is compatible with type3 / artcam/castmate/wen tai and other CAD/CAM design software,

Have tool compensation, Chinese display, background editor, spindle multipoint orientation, displaying simulation operation and fault display function.

Automatic oil lubrication system, maintenance, maintenance more convenient.

Pieces have breakpoint continued carving, restore power, processing time prediction, etc.

Design more human, whether to cut or finely crafted can handy.

Technical parameters

Machine type XK - 6090 optional configuration

Working stroke 600 * 900 * 150 can be customized

Machine structure steel lathe bed, bed profile surface square tube structure/adsorption mesa

Machine size 850 * 1300 * 1250

Spindle power 1.5 KW water-cooled spindle specified power/air/head

The maximum working speed is 8 m/min

Working voltage is AC220V, 50 hz

Operating system d macro system DSP controller or specify system

Servo motor stepper motor works

Carving instruction G code, HPGL, U00, MMG, PLT

XYZ axis precision grinding screw drive transmission way

From 3.175-3.175 available tools
